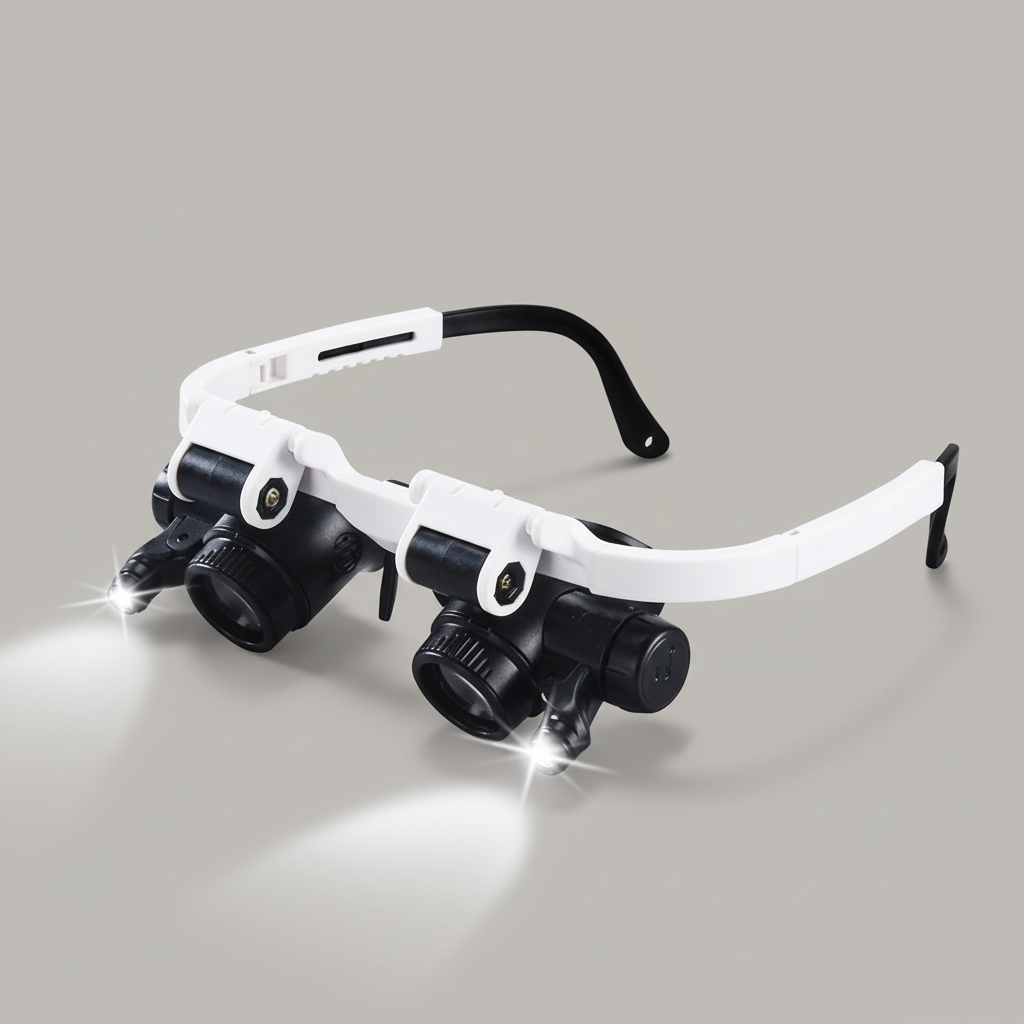

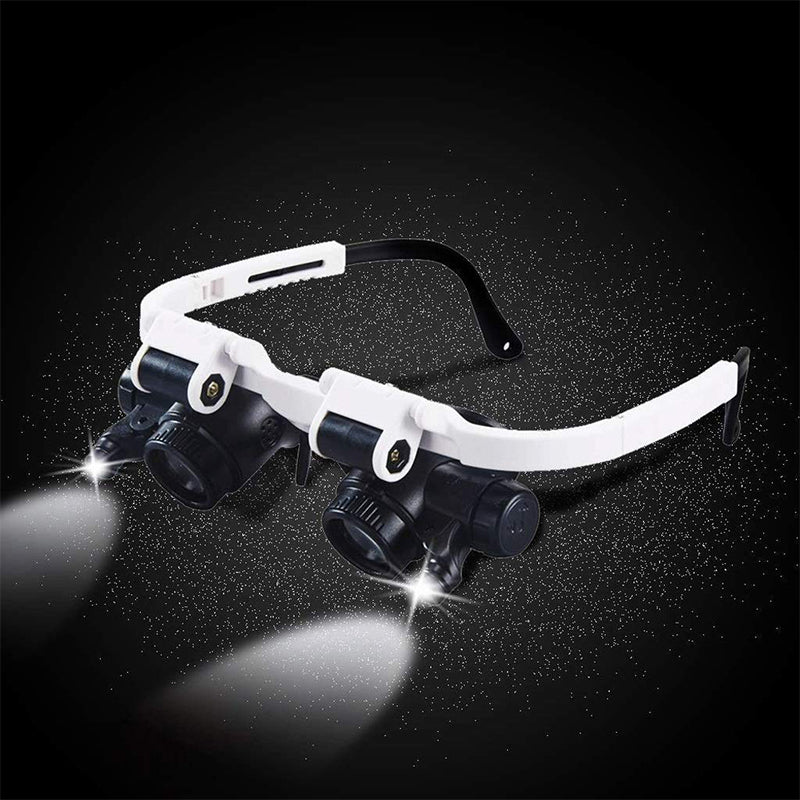

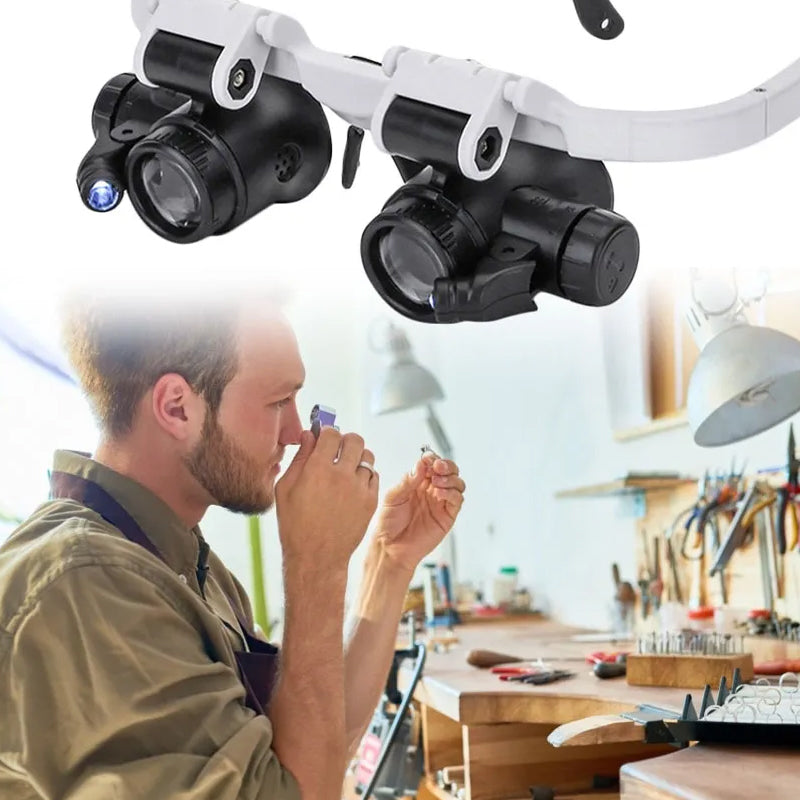

Dual-lens LED magnifier kit with 8x, 15x, and 23x magnification and 180-degree rotating lens
Meet the two-lens LED magnifier set designed for precise macro inspections and micro-mechanical work. It starts with 8x and 15x primary lenses that can be stacked to deliver a combined 23x magnification, enabling ultra-detailed viewing. The lenses are crafted from optical-grade acrylic to provide bright, clear images with minimized chromatic aberration.

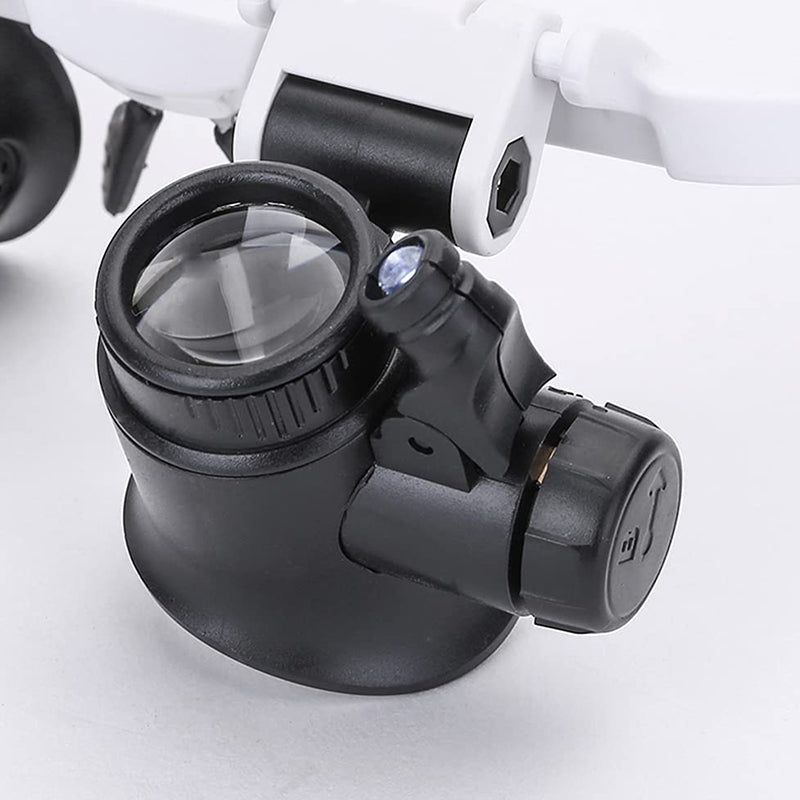

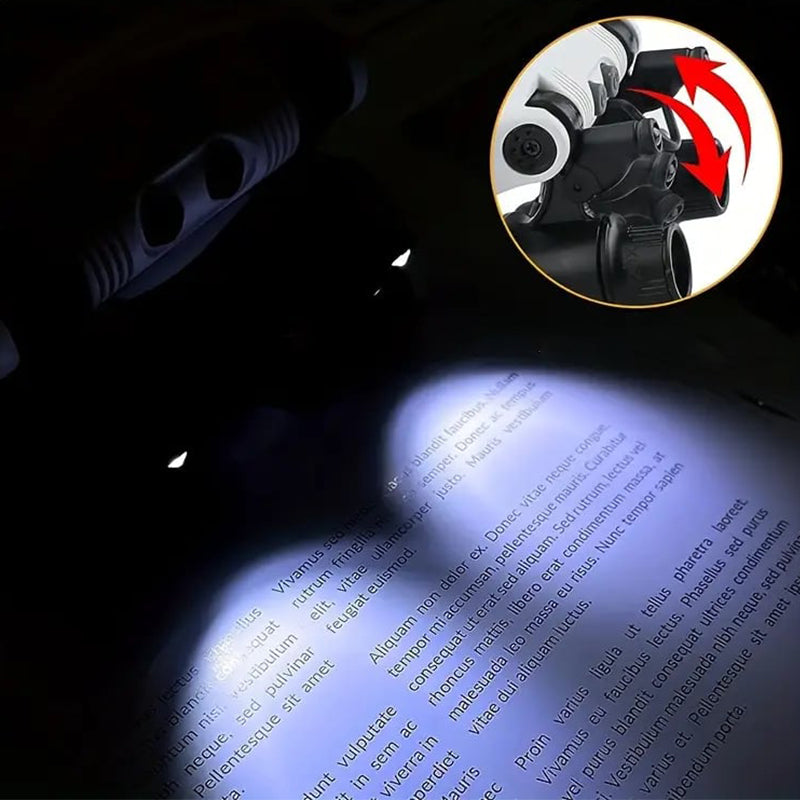

The system employs a dual-mode adjustable LED array for consistent illumination. Each ocular housing contains independent LEDs with two brightness levels, directing light onto the focal plane to minimize shadows during delicate repairs or inspections.
The lenses rotate on a 180-degree vertical pivot, enabling effortless switching between magnified and unaided vision without removing the headset. The chassis supports 3-axis ergonomic customization, including retractable arm lengths, moldable nose pads, and a 5 mm horizontal sliding adjustment to ensure accurate pupillary distance alignment and a secure fit during high-vibration tasks.
Construction blends an impact-resistant ABS frame with high-clarity acrylic lenses, yielding a lightweight headset that minimizes neck fatigue during extended use. This setup is well-suited for industrial and technical applications where precise magnification clarity is essential.
Applications

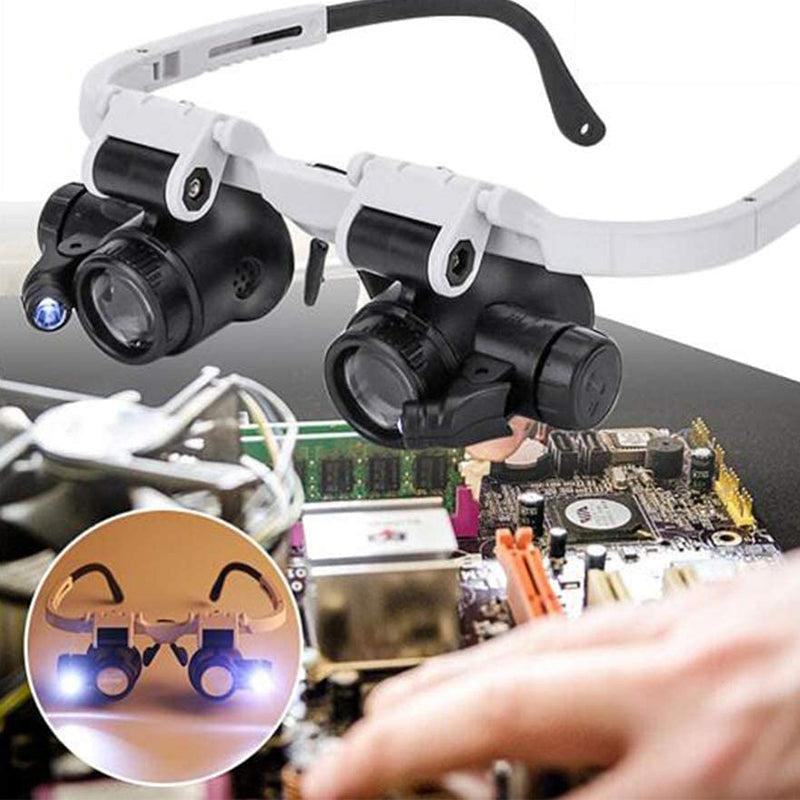

- Surface-mount technology soldering
- Horological maintenance
- Gemstone evaluation
- Industrial engraving where high-magnification clarity is required

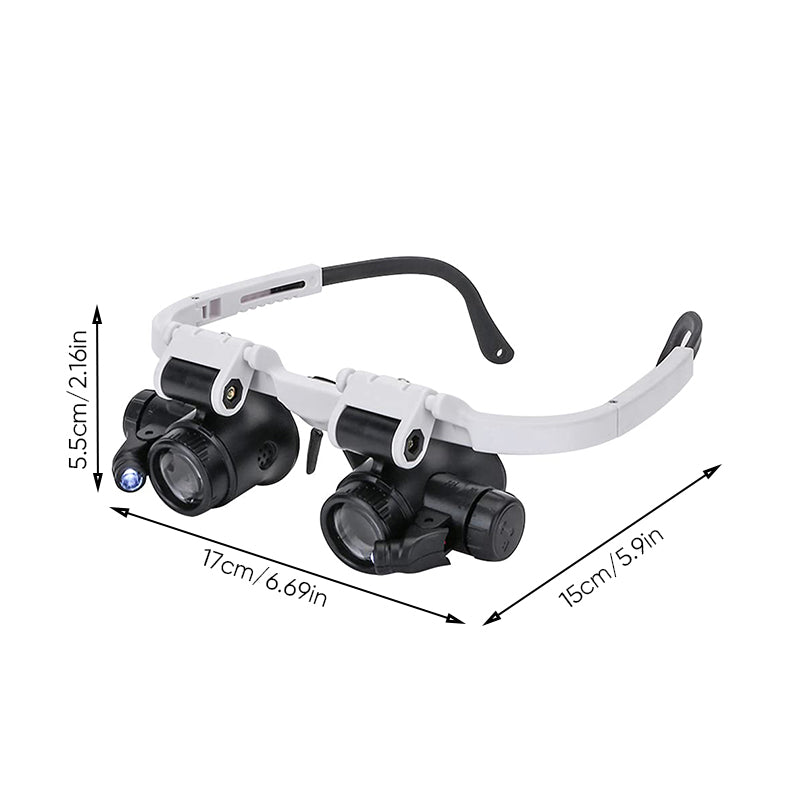

Technical data
- Material: reinforced ABS and optical-grade acrylic
- Magnification ratios: 8x, 15x, 23x (stacked)
- Lateral adjustment range: 5 mm
- Lens rotation: 180°
- Power source: integrated battery compartment
- Hardware inventory: 1x dual-eye magnifying headset with integrated 8x/15x lens set
Usage and maintenance
- Wear the headset on the head and adjust the retractable arms until the fit is secure.
- Position the magnifying lenses over the primary eye or both eyes as needed.
- For maximum 23x magnification, engage both the primary and secondary lenses in the stacked configuration.
- Switch the LEDs to the appropriate intensity for the surrounding light.
- To clean, use a dry lens-grade microfiber cloth and avoid chemical solvents or abrasive materials that could damage the acrylic coating.
